axle -1500kg Bramber drawings and dimensions Waterproof Bearings 1510MBC – 4×5.5 PCD 2025mm OHF

This axle replaces the original axle that was  fitted to the old Bramber trailers.

It was fitted to 1300 and 1500 kg trailers

It was also fitted to 2500 and 3000 kg four wheel trailers

Check measurements

MBC (middle bracket centres)    1510      59.44

Overall chassis width     1550 mm 61. inches

internal chassis width  1470mm   57.87inches

OHF  ( outer hub face )   2025      79.72inches

PCD (pitch circle diameter)      4 stud  PCD 139.7mm  5.5 inches

Axle Rating     1500kg

The original axle was probably manufactured by ALKO, but had hollow drop arms that rusted from the inside out

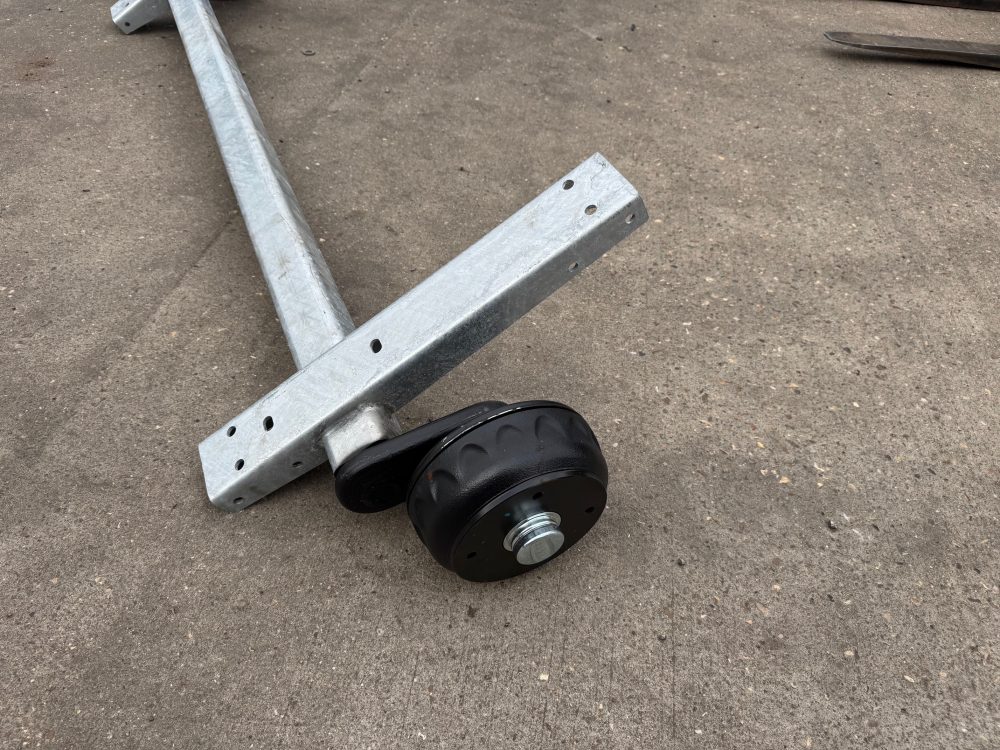

This axle is manufactured by Knott with solid steel drop arms

New brake cables may need to be fitted ( see attached link)
