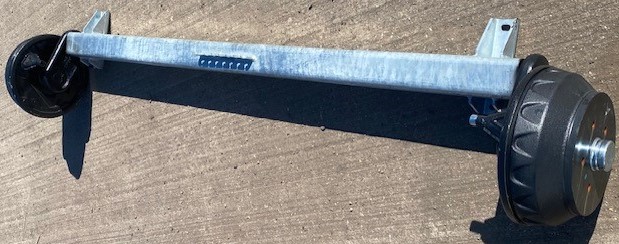

AXLE 1600KG BRAKED 1675MBC 2140OHF 5X112PCD

This axle replaces the original axle that is  fitted to the current  Snipe trailer.

Check measurements

MBC (middle bracket centres)    1675mm      66 inches

Overall chassis width     1715 mm 67.5 inches

internal chassis width  1635mm   64.3 inches

OHF  ( outer hub face )   2140       84.25 inches

PCD (pitch circle diameter)  5 x 112    4.4 inches

Axle Rating     1600kg

Hole spacing of mounting brackets 160mm

This axle is manufactured by Knott

New brake cables may need to be fitted ( see attached link)
